DeepMIMO1000-GWC
DeepMIMO1000
GWC scenario
- An outdoor scenario constructed based on an area around GWC@ASU
- min latitude = 33.4196500
- min longitude = -111.9326400
- max latitude = 33.4218200
- max longitude = -111.9288200
- 1 base station and around 10k candidate users!
- Dataset is available at operating frequency 3.5 GHz
Note: This scenario is based on the Boston 5G model developed by Remcom
Key components
- 1 base station (BS): BS1. The height of all BSs is 6 m.
- Each antenna array element at the BS is an isotropic antenna

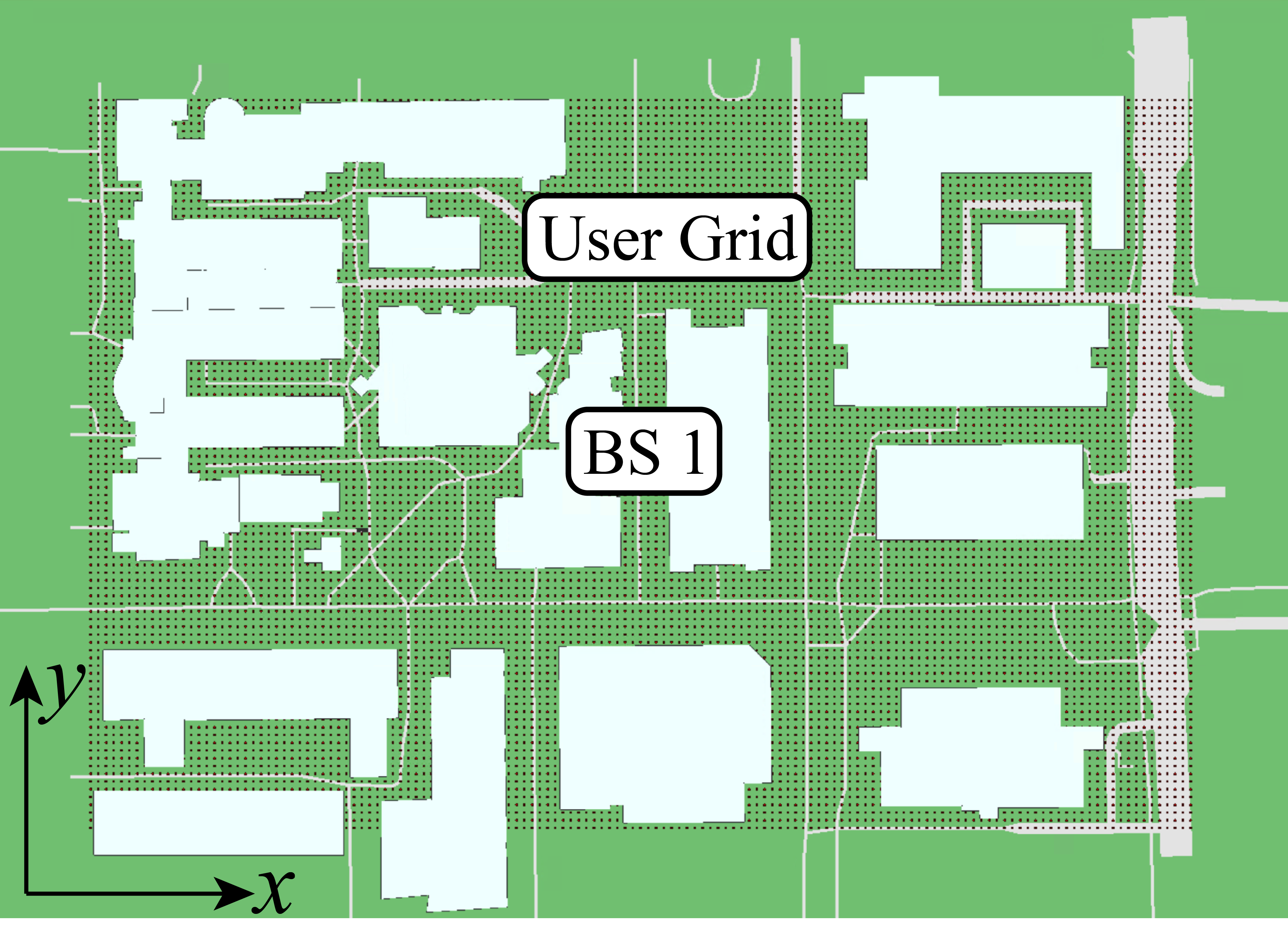

- One uniform x-y user grids (UG) covering the area.
- Total number of users = 13,585 users
- The first user in every user grid is always the user with the lowest (x,y) coordinate
- The height of all user grids is 2 m
- Each antenna array element at each user is an isotropic antenna
- First user grid (UG1)
- Accessed from Row 1 to Row 95 (95 rows in total)
- 143 users per row (143 users with the same y coordinate)
- 2.5 m spacing between adjacent users

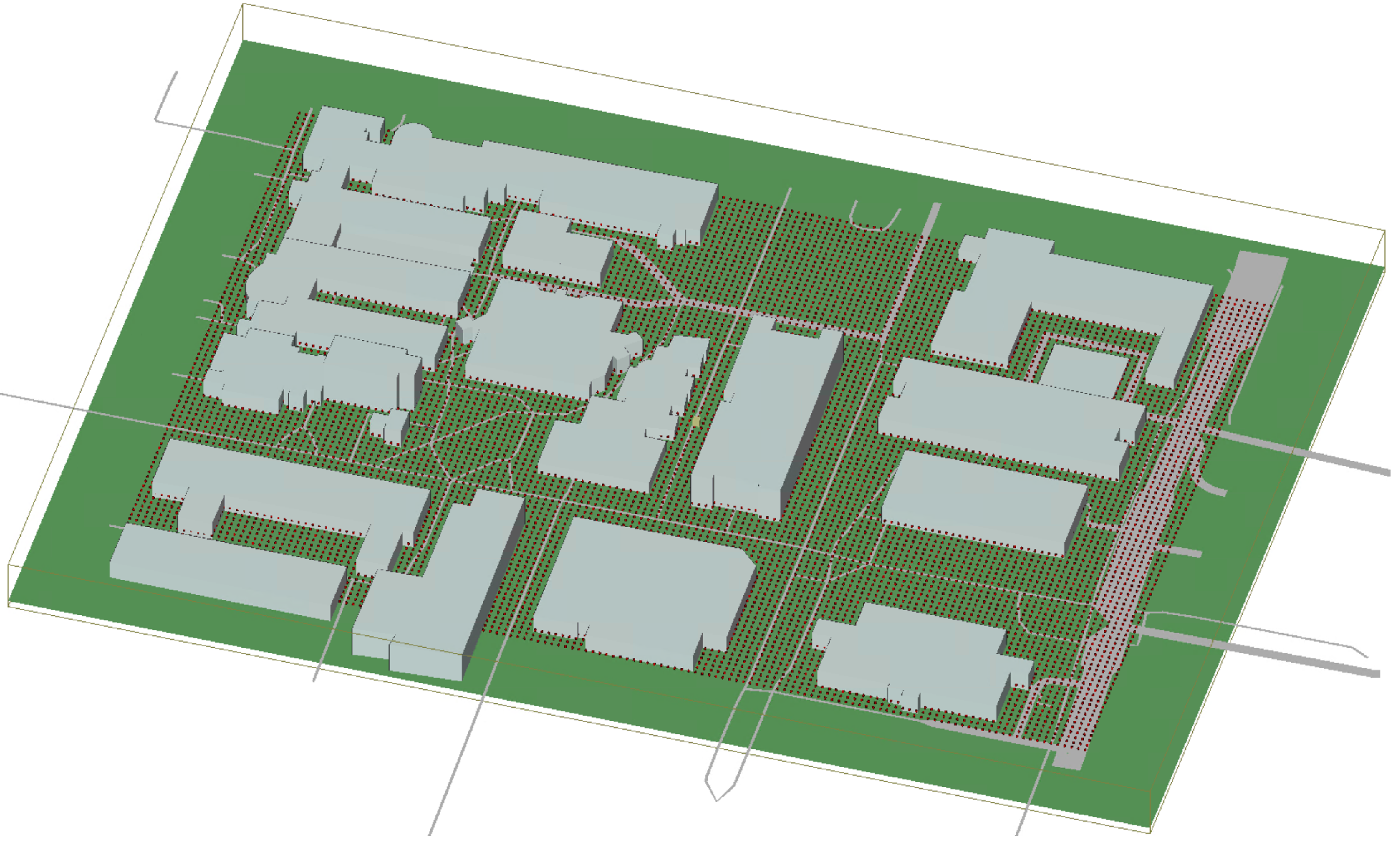

- The site is constructed base on an area around GWC@ASU
- min latitude = 33.4196500
- min longitude = -111.9326400
- max latitude = 33.4218200
- max longitude = -111.9288200
- The ITU concrete and ITU wet earth are adopted as materials for the buildings and the terrain respectively
- The ray-tracing angle spacing is 0.25° (degree)
- As for the propagation model, each channel path can undergo a maximum of 3 reflections before reaching the receiver
- 3.5 GHz operating frequency: ‘GWC_3p5’ scenario (zipped file) or ‘GWC_3p5’ scenario (folder)
